Reverse engineering

FEM analysis

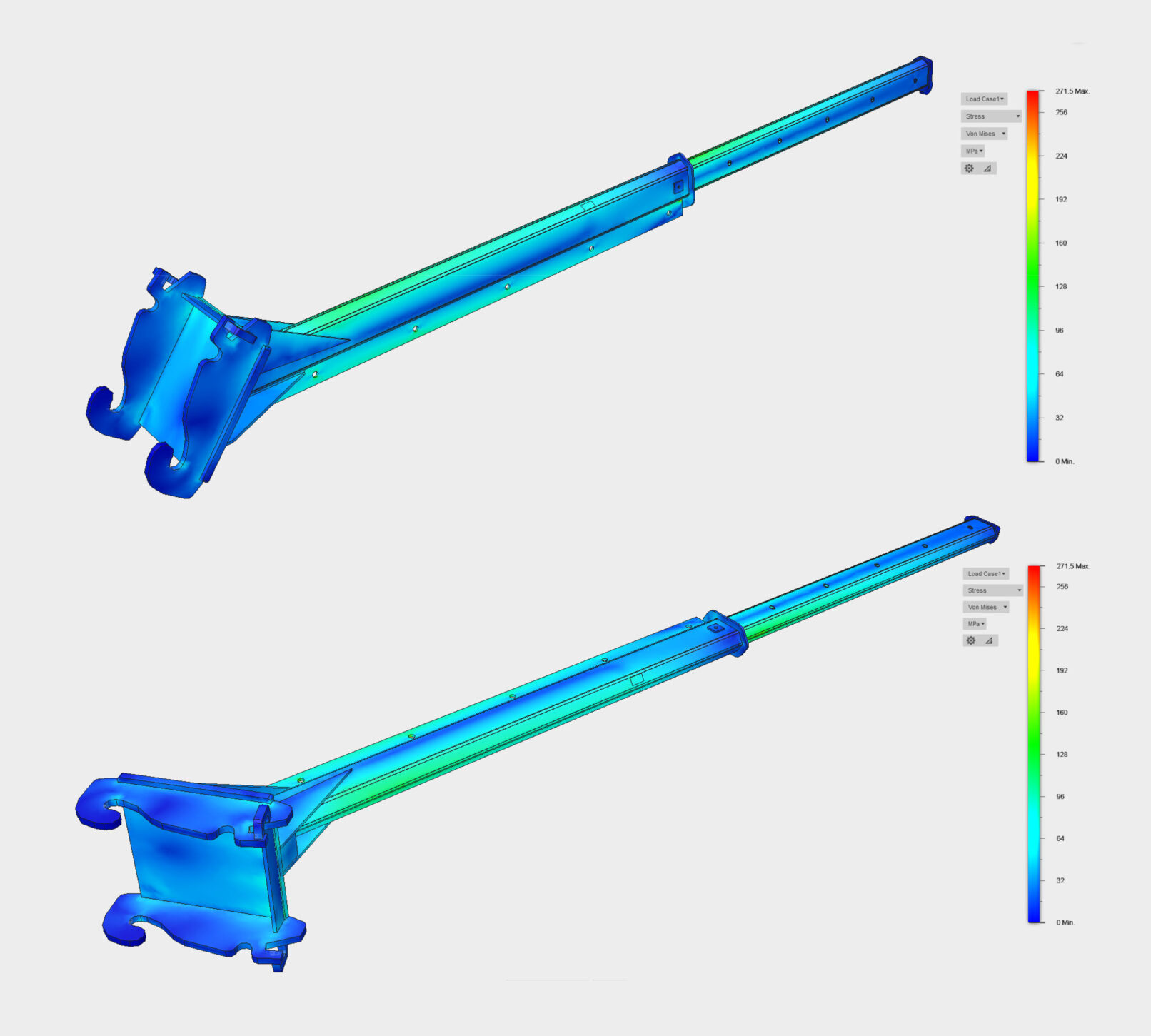

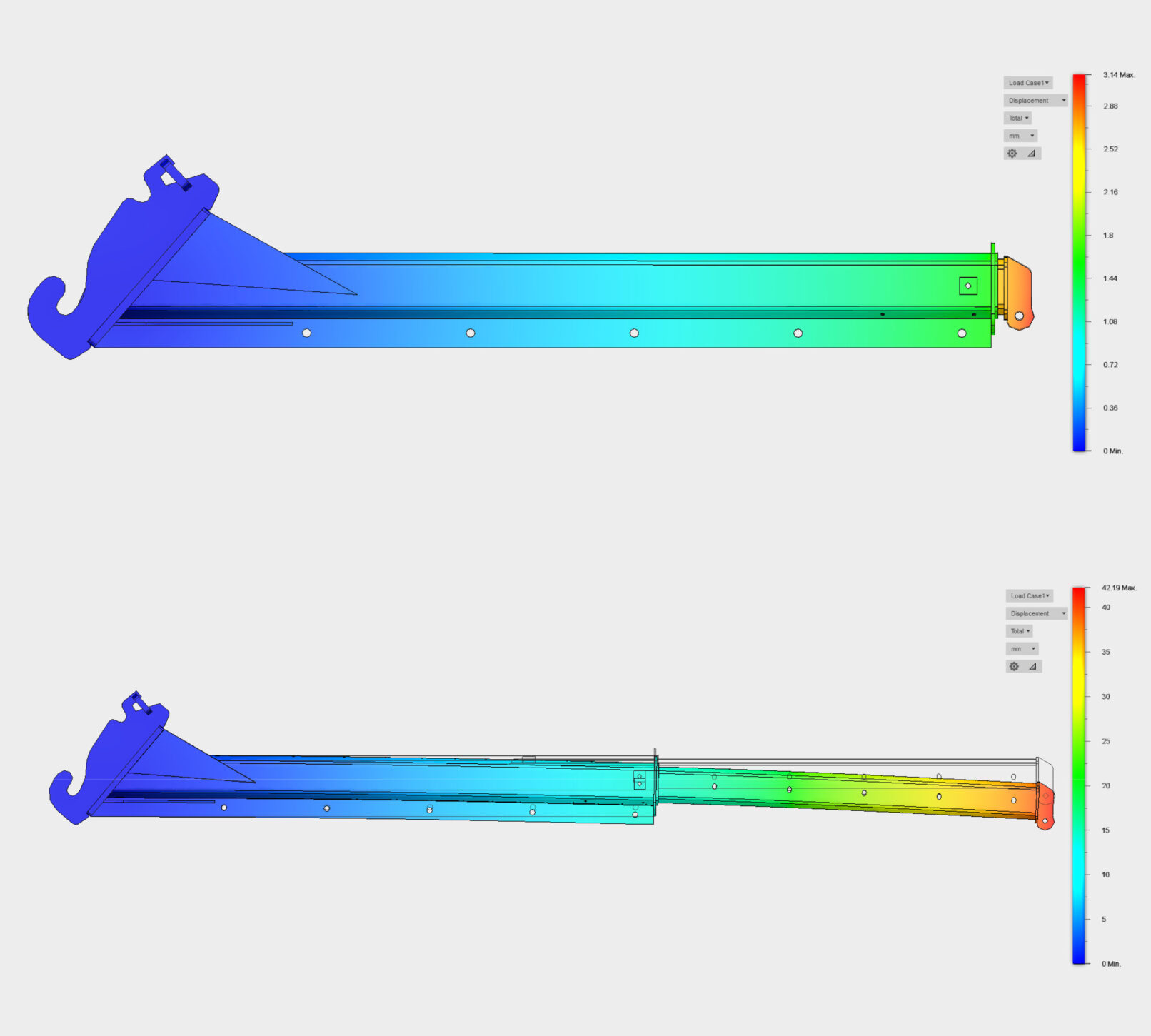

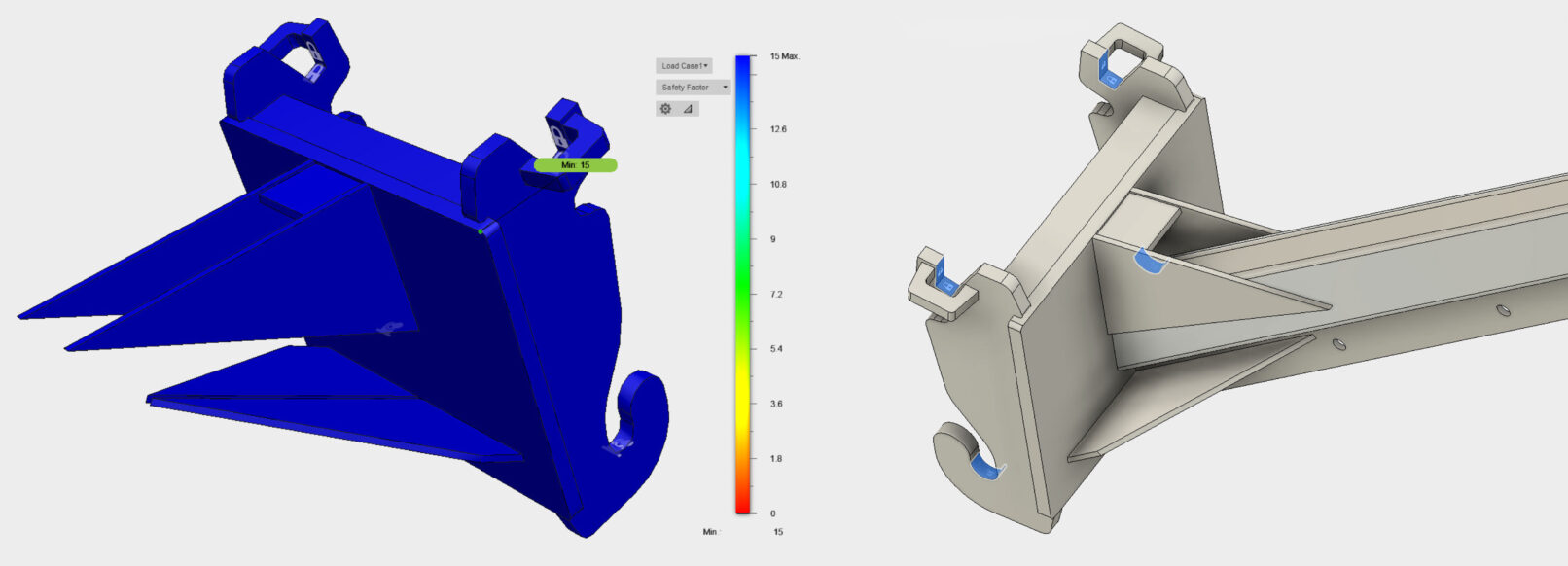

Our customer manufactured jib cranes but lacked proper documentation for them. Based on existing drawings and through reverse engineering, we created a 3D CAD model of the jib. This allowed one of our partners to perform an FEM analysis and produce a thorough report. In this way, we were able to help our customer get the documentation for an existing product in order.
